Architecture

NidanEHR integrates separate specialized systems (EMR, LIS, ERP, PACS, and reporting engine) at the container and event layers. This reference describes the component connections, data flows, and deployment structure.

Applies to

The current NidanEHR stack: OpenMRS 2.8.x · OpenELIS-Global 2 · Odoo 19 CE · Orthanc · Kafka 7.5 · Keycloak. Orchestration is defined by nidan-docker/docker-compose.yml. Component versions are pinned there and in each component's build files.

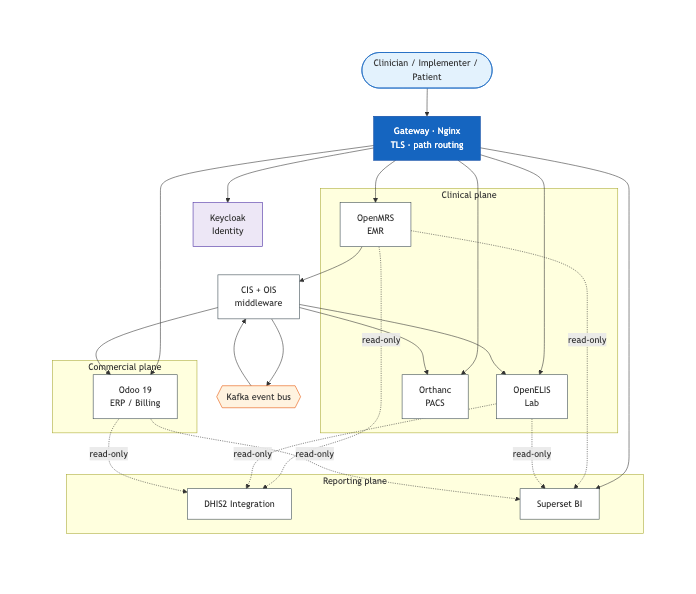

System at a glance

Every component runs as a container on a single private Docker bridge network (nidan-network). A single gateway (Nginx) is the only externally-exposed surface; it terminates TLS and routes requests to the right service by URL path. Nothing else is published to the outside world.

Functionally the system divides into three planes:

Plane	Owns	Primary systems
Clinical	Patients, encounters, orders, results, imaging	OpenMRS, OpenELIS, Orthanc
Commercial	Billing, pharmacy, inventory, POS, insurance	Odoo
Reporting	Aggregate statutory reporting and BI	DHIS2 integration, Superset

Components and ports

All ports below are internal to nidan-network unless noted. Only the gateway publishes ports to the host.

Service	Image / build context	Internal port	Datastore	Role
gateway	./proxy (Nginx)	80, 443, 8443 (published)	-	Reverse proxy, TLS termination, path routing
openmrs-backend	./openmrs (Tomcat)	8080	MariaDB	OpenMRS 2.8 API + custom OMODs
openmrs-frontend	./openmrs/frontend	80	-	O3 single-page app (static assets)
openmrs-db	mariadb:10.11	3306 (host 3307)	-	OpenMRS database (ROW binlog for Debezium)
odoo	trigonaltechnology/nidan_odoo	8069	PostgreSQL	ERP: billing, pharmacy, inventory, POS
odoo-db	postgres:15	5432	-	Odoo database
openelis	OpenELIS-Global-2	8080	PostgreSQL	Lab information system backend
openelis-frontend	OpenELIS-Global-2/frontend	80	-	Lab UI
openelis-db	openelis-global-2-database	5432	-	Lab database (clinlims)
orthanc	orthancteam/orthanc	8042, 4242	PostgreSQL	PACS / DICOM store + OHIF viewer
orthanc-db	postgres:15	5432	-	Orthanc database
nidan-cis	trigonaltechnology/nidan-cis	8081	-	Clinical Integration Service
nidan-ois	trigonaltechnology/nidan-ois	8082	-	Order Integration Service
nidan-integration-db	postgres:15	5432	-	CIS/OIS state + Debezium offsets
nidan-kafka	cp-kafka:7.5.0	9092	-	Event streaming
nidan-zookeeper	cp-zookeeper:7.5.0	2181	-	Kafka coordination
nidan-dhis2	trigonaltechnology/nidan-dhis2-integration	5000	MySQL	Federal HMIS / DHIS2 reporting
superset	./superset	8088	-	BI dashboards
keycloak	quay.io/keycloak	8080	-	Centralized identity (optional)

The gateway and routing

The gateway is the system's front door. It terminates TLS and rewrites incoming paths to the appropriate internal service. Routing is by URL prefix:

Path	Routes to
/	Dashboard landing page
/openmrs, /openmrs/spa/	OpenMRS backend / O3 frontend
/odoo	Odoo
/openelis/	OpenELIS frontend
/api/OpenELIS-Global/	OpenELIS backend (context path preserved)
/orthanc-container	Orthanc PACS
/auth	Keycloak
/superset	Superset
/cis/, /dhis2/	Middleware / reporting endpoints

Two TLS ports, on purpose

The gateway listens on 443 for the main stack and 8443 specifically for OpenELIS-Global - the pre-built OpenELIS frontend hard-codes that port for TLS. Do not consolidate them.

OpenELIS context path

The OpenELIS backend runs under SERVER_SERVLET_CONTEXT_PATH=/OpenELIS-Global. The gateway rewrites /api/OpenELIS-Global/ → openelis:8080/OpenELIS-Global/. The context path must be preserved end to end - stripping it breaks the lab UI.

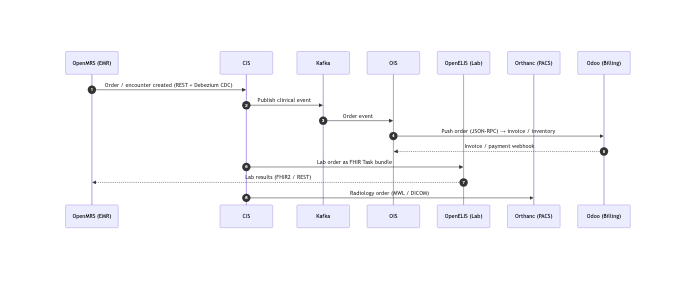

Data flows

The system architecture is event-driven. OpenMRS functions as the clinical source of truth. The custom CIS/OIS middleware captures state changes and translates them into Kafka events for downstream processing by commercial, laboratory, and imaging subsystems.

Flow sequence:

1. Clinical plane - OpenMRS owns patients, encounters, and orders. CIS converts OpenMRS state into Kafka events and bridges lab orders to OpenELIS (as FHIR Task bundles) and radiology orders to Orthanc (MWL/DICOM).
2. Commercial plane - Odoo owns billing, pharmacy, inventory, and POS. OIS consumes order events from Kafka and drives Odoo over JSON-RPC; Odoo posts back invoice and payment state via webhooks.
3. Lab results - OpenELIS returns results into OpenMRS via FHIR2 / REST, closing the clinical loop.
4. Reporting plane - the DHIS2 integration reads the OpenMRS, OpenELIS, and Odoo databases read-only, aggregates by Bikram Sambat month, and submits to the Federal HMIS / provincial DHIS2. Superset reads the same databases directly for BI dashboards.

The integration boundary owns case conversion

OpenMRS/OpenELIS (Java, camelCase) and Odoo/Postgres (Python, snake_case) name fields differently. Converting between the two is the responsibility of the CIS/OIS middleware, not of the systems on either side.

Identity

Keycloak handles centralized authentication at /auth through the gateway. Subsystems delegate user credentials and service client authentication to Keycloak rather than maintaining independent directories.

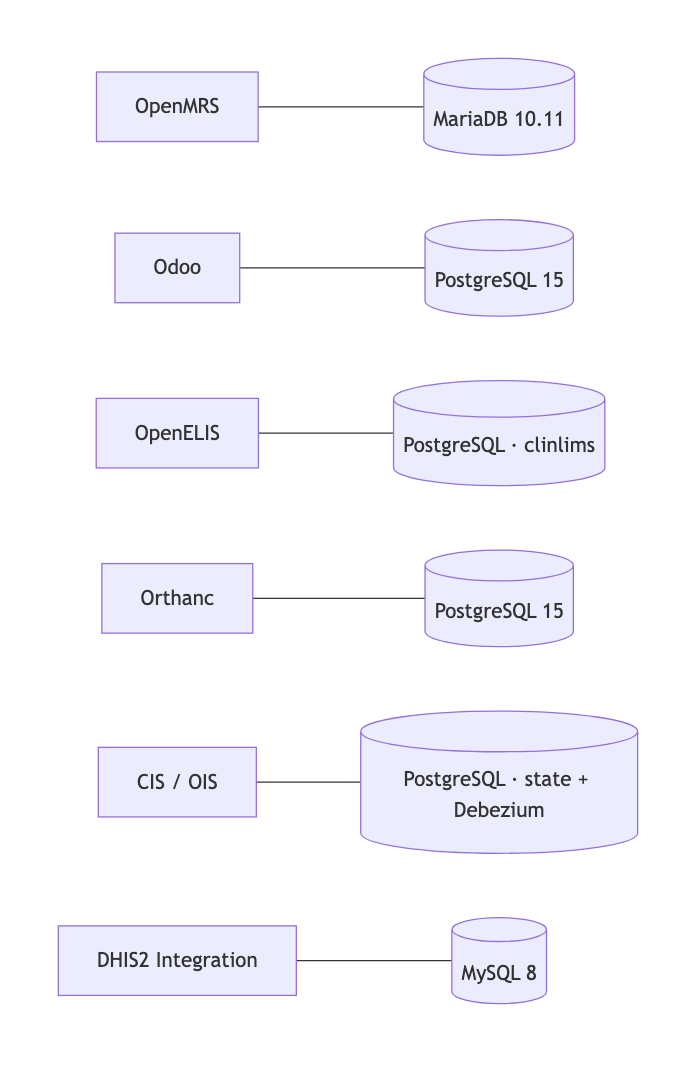

Data stores

Each system keeps its own database - there is no shared schema:

OpenMRS runs on MariaDB

In the current Compose file OpenMRS uses MariaDB 10.11 with ROW-based binlog enabled, which Debezium/CIS reads for change capture. A PostgreSQL option exists in the Compose file but is commented out behind an openmrs-postgres profile. The other systems use PostgreSQL (Odoo, OpenELIS, Orthanc, integration store) or MySQL (DHIS2 reporting).

How it is assembled

The entire stack runs from a single Compose project in nidan-docker/. The deployment process builds custom EMR modules (OMODs) and the frontend assets before baking them into their respective container images. The remaining containers build dynamically during deployment. Refer to Installation for build commands.

Diagrams

The diagrams above are generated from the Mermaid sources in diagrams/*.mmd via scripts/render_diagrams.py. Edit the .mmd source and re-run the script to update the image.
